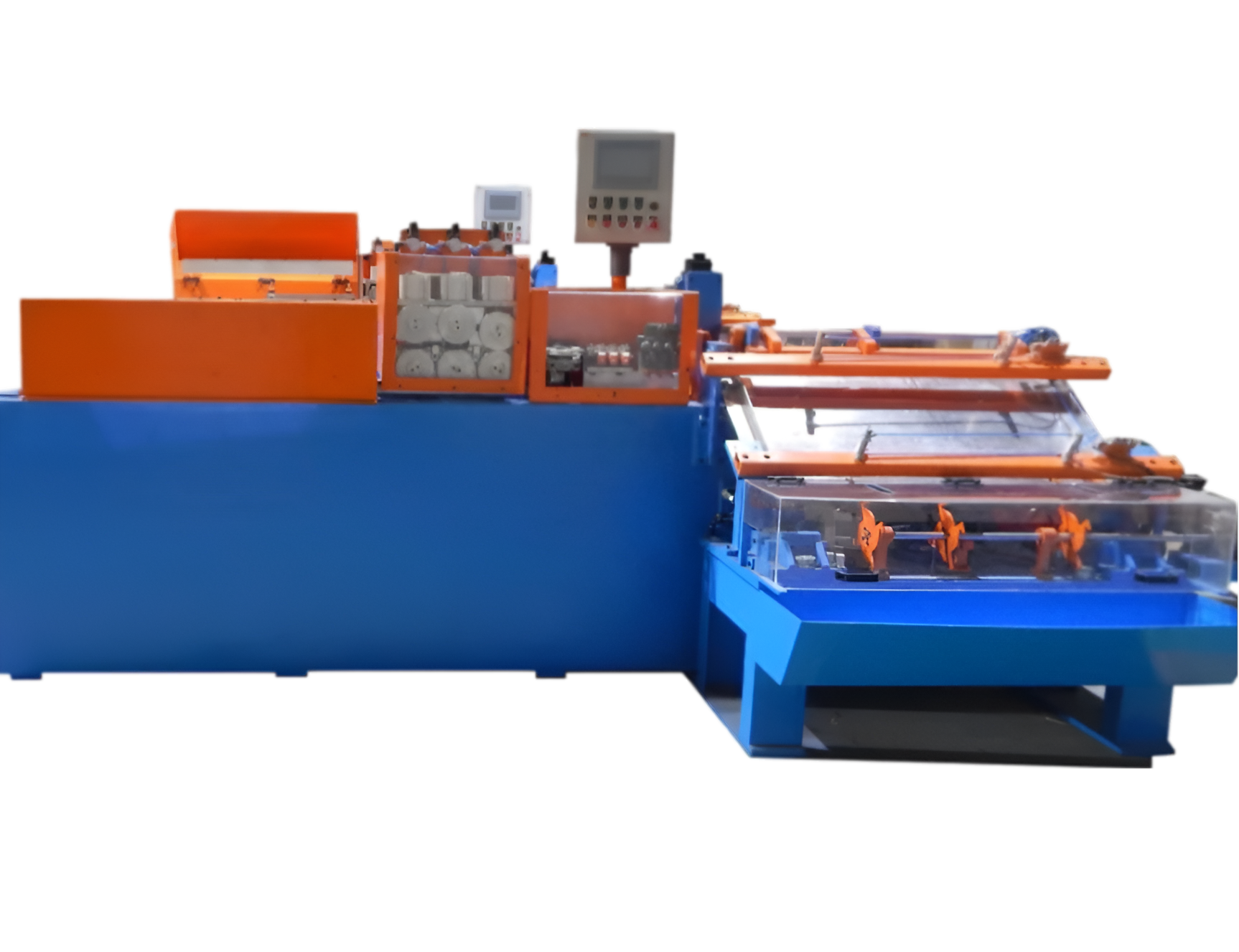

Tig Wire Cutting Machine

These machines are specifically designed for straightening, cutting and embossing of the wire to produce TIG Filler wires. They are engineered with precision to meet industry standards. The robust construction ensures longevity and reliability, making them cost-effective for manufacturers. Equipped with advanced features and durable components, these machines deliver consistent performance, minimizing downtime and maintenance costs. They handle wire diameters 2mm, 2.4mm & 3.2mm and different materials like MS, Copper coated MS, Stainless steel etc. Proper preventive maintenance extends operational life, ensuring efficient operation for years.

The integration of automation and smart technology reduces manual intervention, increasing operational speed and accuracy. Manufacturers benefit from reduced waste and higher throughput, making these machines essential for TIG wire Filler rods production. Their robust design and user-friendly interface make them suitable for both small-scale and large-scale production environments. Additionally, they offer excellent return on investment.

Machine Production Specifications:

Specification
MTPM-SPIN
MTPM-ROLL
Diameters that can cut
1.6mm, 2mm, 2.5mm, 3.2mm
1.6mm, 2mm, 2.5mm, 3.2mm
Diameter that can emboss
2mm,2.4mm & 3.2mm
2mm,2.4mm & 3.2mm
Lengths that can be cut
1000mm
1000mm
Straightening method
Using a high speed spinner
using a set of Rollers
Cutting method
Wire Stop & Cit
Wire Stop & Cut
Number of cuts per minute MS
45
45
No. of cuts per minute SS
35
35
Pay-off
Passive pay-off for DIN1000 bobbin or wire coils
Passive pay-off for DIN1000 bobbin or wire coils
Embossing
Both ends-Front & Back
Both ends-Front & Back
Wire collection
In a sufficiently big tray
In a sufficiently big tray
Accuracy in Length
+/- 1mm
+/- 1mm
